Scanner Models: FreeScan UE Pro Series, FreeScan Trio
There are two options (Automatic or Manual) for adding your scale bars into the software. These options are outlined below:
- Click on the "Import Scale Bar File" button to import the .pgf files of the scale bars directly.
- Click on the "Create Scale Bar File" button to manually create your scale bar files.

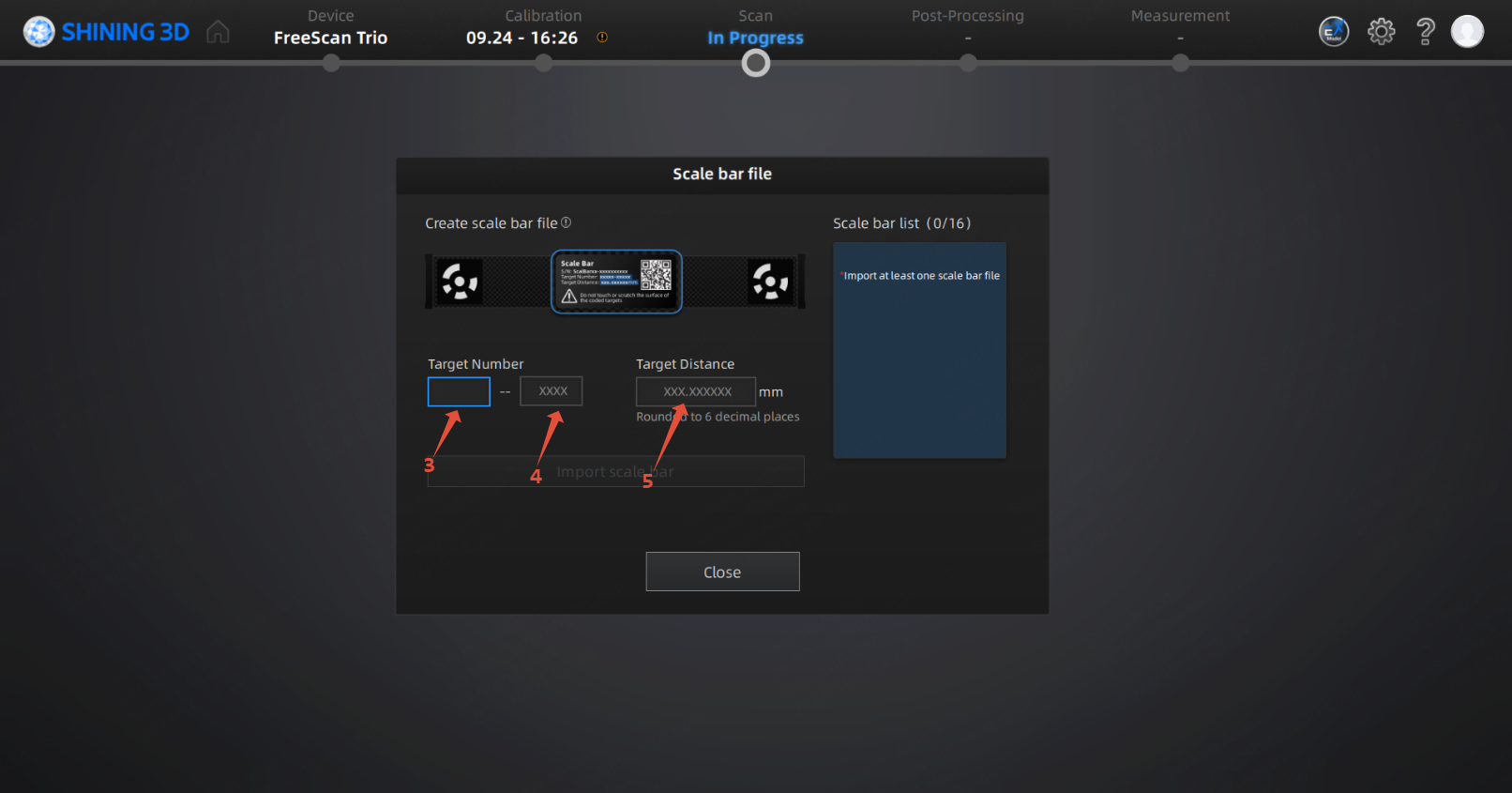

- Enter the first Target Number, which you can find on the scale bar label.
- Enter the second Target Number, also found on the scale bar label.
- Enter the Target Distance, as indicated on the scale bar label. Note: Please use a period instead of a comma.

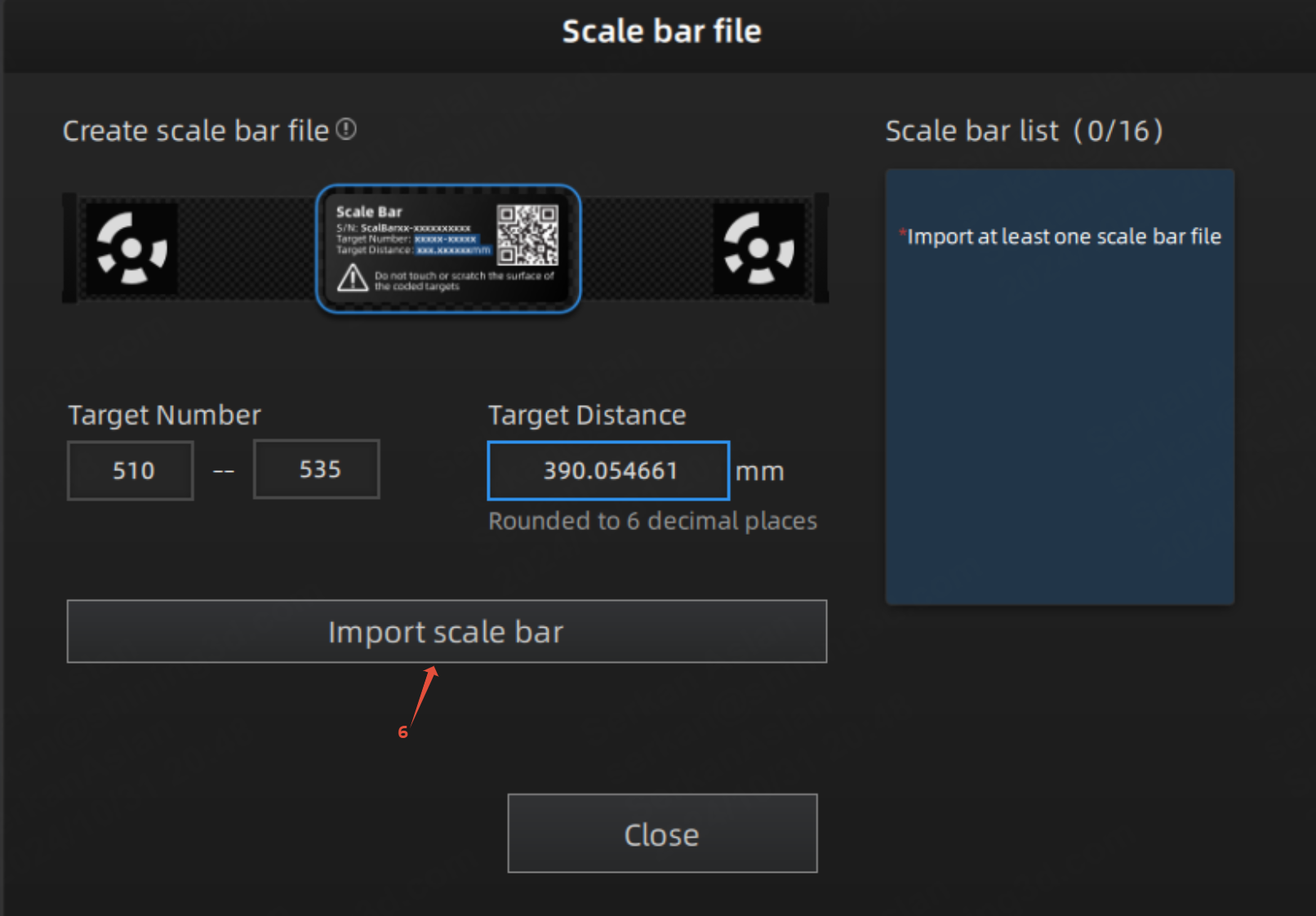

- Once all Target Numbers and Distance entries are complete, click on the "Import Scale Bar" button.
7. Verify that the scale bar appears in the Scale Bar List. You can repeat these steps to add additional scale bars.
8. Click the "Open File Location" icon.
9. You can locate your .pgf file in the folder path shown.
